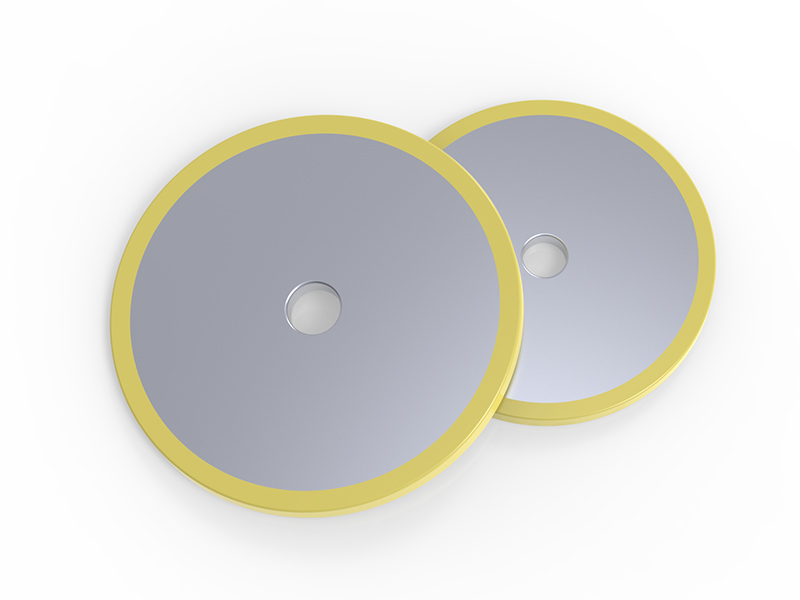

Surface Grinding Wheels are abrasive tools used for surface grinding machines, primarily for processing flat surfaces, end faces, stepped surfaces, and more. They are suitable for precision grinding of materials such as hardened steel, cast iron, carbide, ceramics, glass, and others.
Workpiece Materials | Recommended Abrasives |
Mild Steel, Alloy Steel | Aluminum Oxide (Al₂O₃) |
Hardened Steel (HRC 50+) | CBN (Cubic Boron Nitride) |
Cast Iron, Non-ferrous Metals | Silicon Carbide (SiC) |
Carbide, Ceramics | Diamond (Diamond) |
High-temperature Alloys (e.g., Inconel) | CBN + Special Bonding Agent |
Determine the Workpiece Material → Select the Abrasive (Al₂O₃ / SiC / CBN / Diamond)
Choose the Bonding Agent → Resin (for high surface finish), Ceramic (for precision), Metal (for superhard materials)
Determine the Grit Size & Hardness → Coarse grit for rough grinding, fine grit for precision grinding
Match the Wheel Dimensions → Ensure outer diameter, thickness, and hole diameter meet machine requirements.
