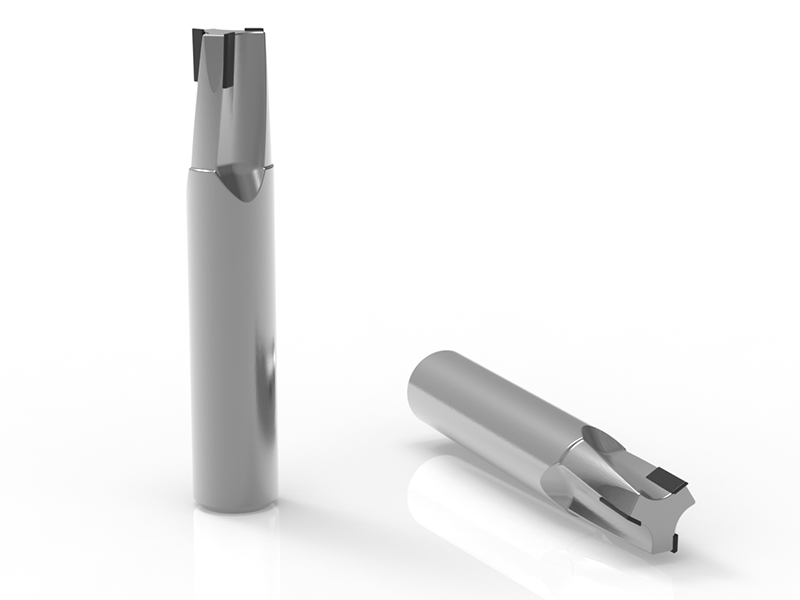

Joyjet' s PCD (Polycrystalline Diamond) end mills are engineered for ultra-precision and high-gloss milling of non-ferrous metals, composites, and ceramics. These PCD diamond tools offer outstanding tool life, razor-sharp cutting edges, and stable, efficient performance for challenging materials and demanding applications. Reach out to us today to request a quote for our diamond tools wholesale options.
Ultra-High Hardness: Diamond hardness up to HV8000–10000
Edge Runout ≤ 0.005mm: Ensures machining stability and prevents tool chatter marks
Versatile Specifications & Customization: Available in various geometries tailored to your needs
We provide comprehensive solutions, including diamond tool sharpening service, to help customers achieve sustainable and modern production goals.
| Order no. | Effective Cutting Diameter | Adapter/Shank/Bore Diameter | Neck Diameter | 1st Maximum Cutting Depth | Usable Length | Overall Length | Corner Radius | Numberof Flutes |
| SJE183 | 6 | 6 | 5.3 | 6 | 19 | 57 | 0.2 | 2 |
| SJE620 | 8 | 8 | 7.3 | 8 | 25 | 63 | 0.2 | 2 |
| SJE058 | 10 | 10 | 9.1 | 10 | 34 | 76 | 0.2 | 2 |
| SJE974 | 12 | 12 | 11 | 12 | 36 | 83 | 0.3 | 2 |
| SJE412 | 16 | 16 | 14.8 | 16 | 45 | 95 | 0.3 | 2 |
| SJE735 | 20 | 20 | 19.1 | 20 | 56 | 108 | 0.3 | 2 |
