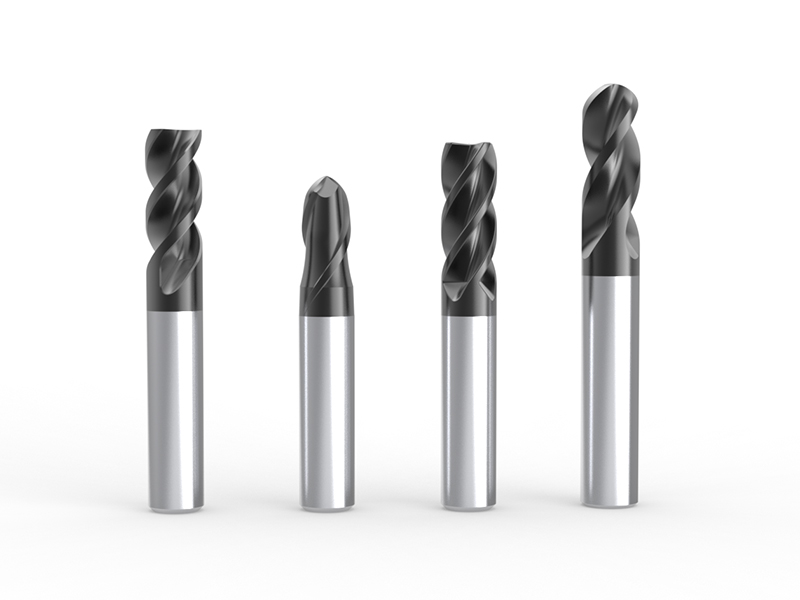

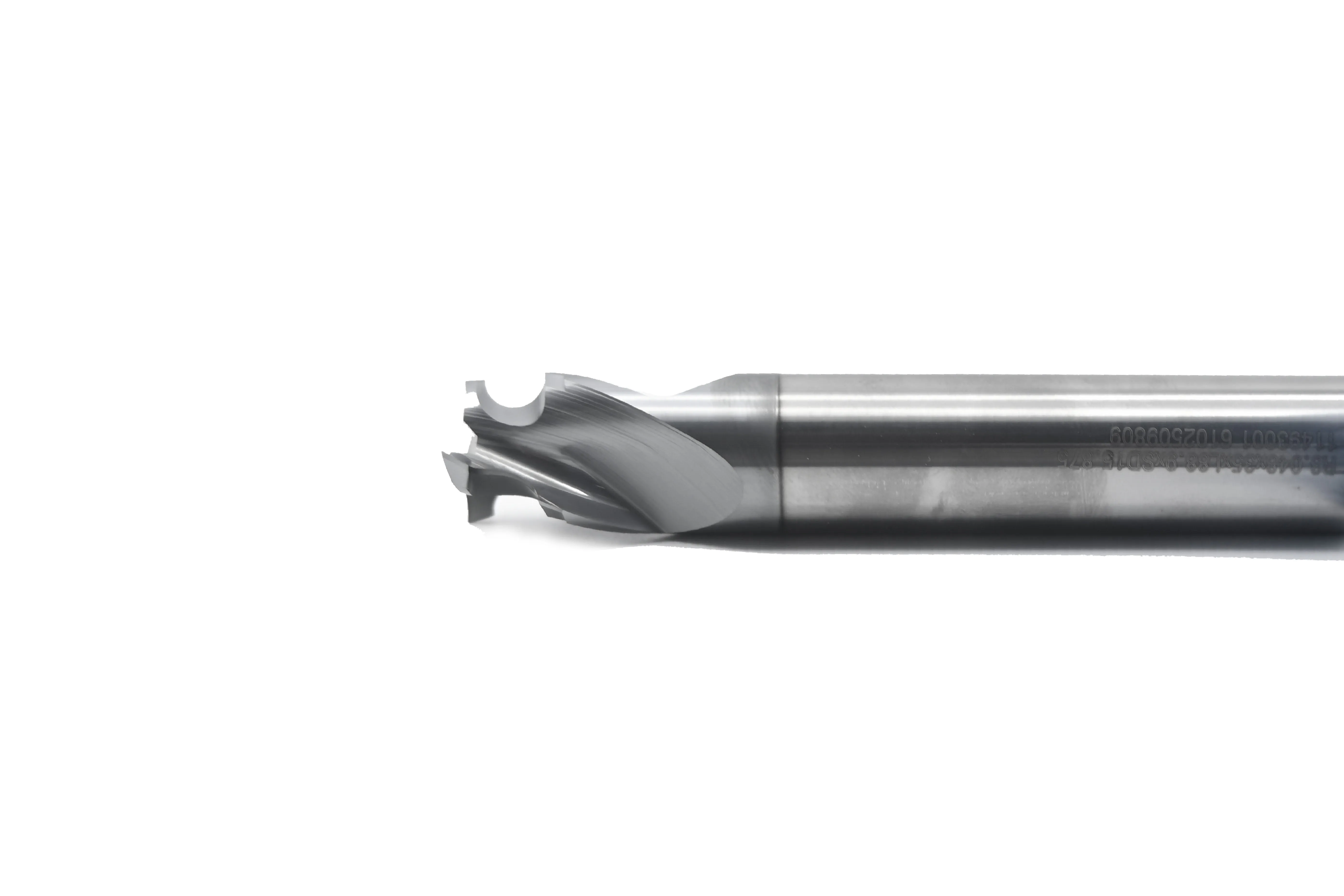

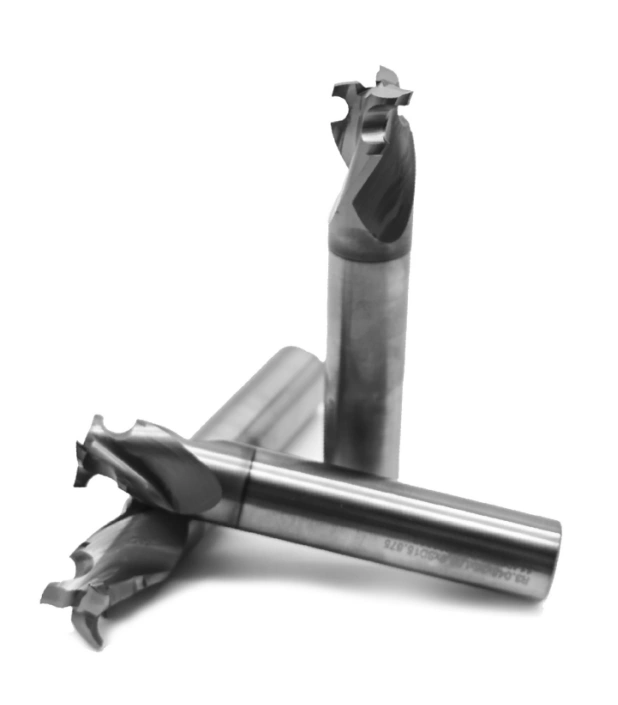

Carbide Milling Cutters (also known as Tungsten Carbide End Mill) is a high-performance cutting tool made from a tungsten carbide (WC) substrate combined with cobalt (Co) and other metal binders through powder metallurgy.
High-Temperature Performance: Retains cutting performance at temperatures between 800-1000°C.
Suitable Materials for Machining: Ideal for high-hardness materials such as hardened steel, stainless steel, titanium alloys, etc.
| Cutting Diameter (d) | Cutting Length (L1) | Shank Diameter (D) | Overall Length (L) | Cutting Diameter (d) | Cutting Length (L1) | Shank Diameter (D) | Overall Length (L) |
| 1 | 3 | 4 | 50 | 8 | 20 | 8 | 60 |
| 4 | 4 | 75 | 35 | 8 | 75 | ||
| 1.5 | 4 | 4 | 50 | 40 | 8 | 100 | |
| 6 | 4 | 75 | |||||
| 2 | 5 | 4 | 50 | 50 | 8 | 150 | |
| 8 | 4 | 75 | 10 | 25 | 10 | 75 | |
| 2.5 | 7 | 4 | 50 | 45 | 10 | 100 | |
| 10 | 4 | 75 | 55 | 10 | 150 | ||
| 3 | 8 | 4 | 50 | 12 | 30 | 12 | 75 |
| 12 | 4 | 75 | 50 | 12 | 100 | ||
| 16 | 4 | 100 | 60 | 12 | 150 | ||
| 3.5 | 9 | 4 | 50 | 14 | 35 | 16 | 100 |
| 4 | 10 | 4 | 50 | 65 | 16 | 150 | |
| 16 | 4 | 75 | |||||
| 20 | 4 | 100 | 16 | 40 | 16 | 100 | |
| 5 | 13 | 6 | 50 | 75 | 16 | 150 | |
| 20 | 6 | 75 | 90 | 16 | 200 | ||
| 25 | 6 | 100 | 18 | 45 | 20 | 100 | |
| 6 | 15 | 6 | 50 | 20 | 50 | 20 | 100 |
| 30 | 6 | 75 | 80 | 20 | 150 | ||
| 30 | 6 | 100 | 100 | 20 | 200 | ||
| 40 | 6 | 150 |
