Carbide Drill Bit Manufacturer

Name: Carbide Drill Bit
Brand: JoyJet Precision Limited
Availability: InStock

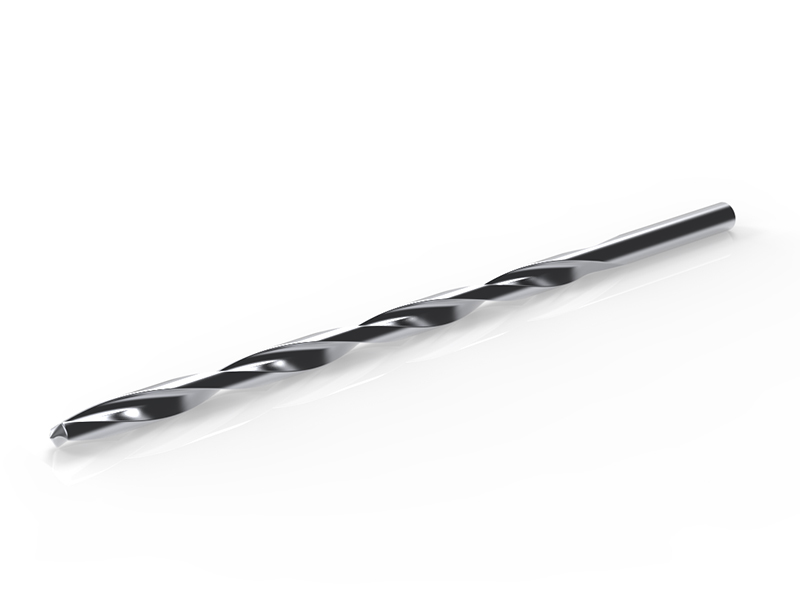

Carbide Drill Bit (Tungsten Carbide Drill Bit) is a high-performance drilling tool made primarily from tungsten carbide (WC) using powder metallurgy technology.

Get A Quote

The Features of Carbide Drill Bit

Materials for Machining: Hardened steel (HRC 50+), high-temperature alloys, high manganese steel.
Coatings: TiN coating, TiAlN coating, diamond coating.

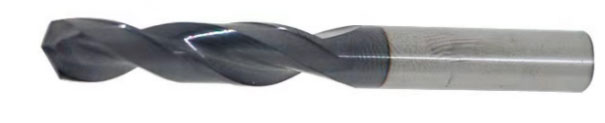

Carbide Drill Bit for HRC 45 Materials				Carbide Drill Bit for HRC 45 Materials
Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)	Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)
φ3	3	3	50	φ12	12	12	75
φ4	4	4	50	φ13*100	13	13	75
φ5	5	5	50	φ14*75	14	14	100
φ6	6	6	50	φ15*100	15	15	75
φ7	7	7	50	φ16*100	16	16	100
φ8	8	8	60	φ17*100	17	17	100
φ9	9	9	60	φ18*100	18	18	100
φ10	10	10	75	φ19*100	19	19	100
φ11	11	11	75	φ20*100	20	20	100

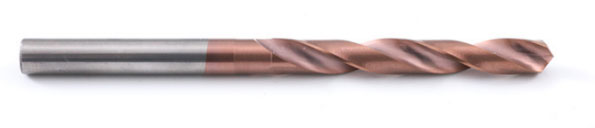

Carbide Drill Bit for HRC 55 Materials				Carbide Drill Bit for HRC 55 Materials
Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)	Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)
φ3	3	3	50	φ12	12	12	75
φ4	4	4	50	φ13*100	13	13	75
φ5	5	5	50	φ14*75	14	14	100
φ6	6	6	50	φ15*100	15	15	75
φ7	7	7	50	φ16*100	16	16	100
φ8	8	8	60	φ17*100	17	17	100
φ9	9	9	60	φ18*100	18	18	100
φ10	10	10	75	φ19*100	19	19	100
φ11	11	11	75	φ20*100	20	20	100

Carbide Drill Bit for HRC 60 Materials				Carbide Drill Bit for HRC 60 Materials
Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)	Specification	Cutting Diameter (D)	Shank Diameter (d)	Overall Length (L)
φ3	3	3	50	φ12	12	12	75
φ4	4	4	50	φ13*100	13	13	75
φ5	5	5	50	φ14*75	14	14	100
φ6	6	6	50	φ15*100	15	15	75
φ7	7	7	50	φ16*100	16	16	100
φ8	8	8	60	φ17*100	17	17	100
φ9	9	9	60	φ18*100	18	18	100
φ10	10	10	75	φ19*100	19	19	100
φ11	11	11	75	φ20*100	20	20	100
