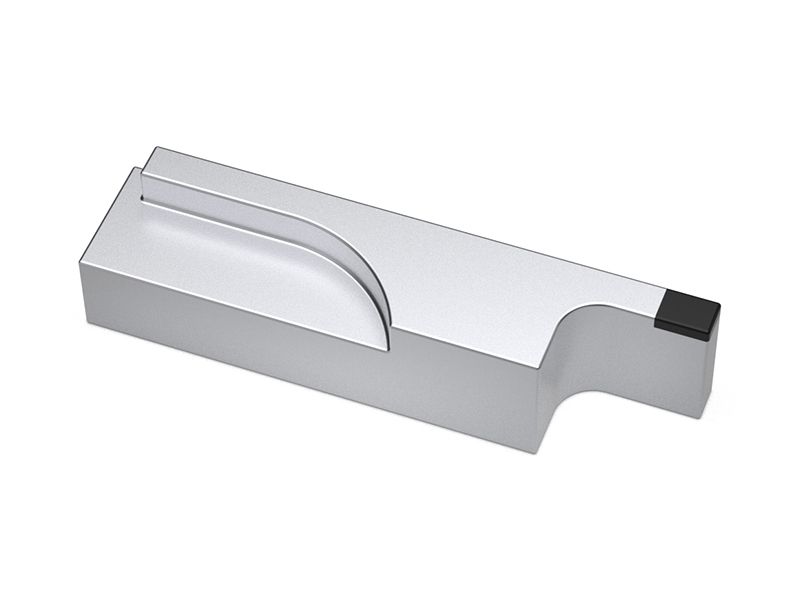

PCBN Grooving Tools are specifically engineered for precision grooving, parting, and profiling operations on high-hardness materials. These PCBN tools are widely used in the machining of hardened steels (HRC55) and cast iron, offering excellent wear resistance and cutting performance. Feel free to contact JoyJet for diamond tools wholesale prices.
Excellent Durability: Engineered for long-lasting performance, providing superior wear resistance for demanding machining tasks.
High Precision: Delivers surface finishes up to Ra ≤ 0.5 μm with edge accuracy of ±0.025 mm for stable machining.
Superior Material Strength: Made from premium substrates with strong welding for longer tool life and breakage resistance.
Optimized for Ferrous Metals: Designed for efficient machining of cast iron and hardened steels around HRC55.

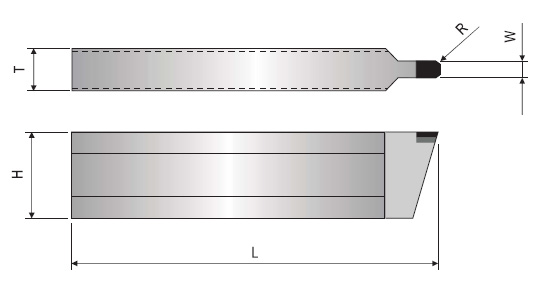

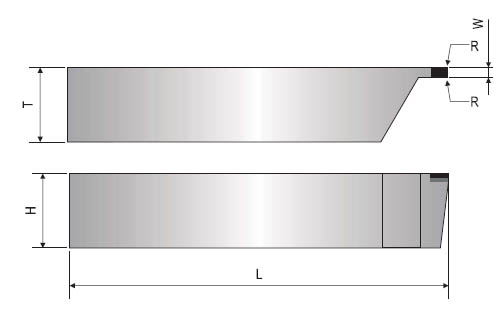

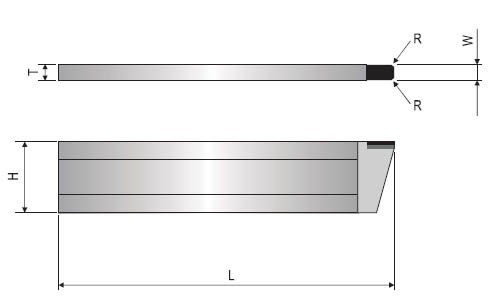

| Image | Order no. | Tip material | W | T | H | L | R |
 | JJ5630-2F | PCD/PCBN | 1.25 | 1.25 | 15.00 | 75.00 | 0.50 |
| JJ5631-2F | PCD/PCBN | 2.16 | 2.16 | 15.00 | 75.00 | 0.25 | |
| JJ5632-3F | PCD/PCBN | 3.64 | 3.64 | 15.00 | 75.00 | 1.00 | |
| JJ5633-3F | PCD/PCBN | 4.04 | 4.04 | 15.00 | 75.00 | 0.25 | |
| JJ5634-3G | PCD/PCBN | 5.00 | 5.00 | 15.00 | 7.00 | 2.00 | |
 | JJ5635-3G | PCD/PCBN | 2.50 | 25.00 | 25.00 | 150.00 | 0.50 |
| JJ5636-4A | PCD/PCBN | 3.00 | 25.00 | 25.00 | 150.00 | 0.50 | |
| JJ5637-4A | PCD/PCBN | 5.30 | 25.00 | 25.00 | 150.00 | 0.50 | |
 | JJ5638-4G | PCD/PCBN | 0.837 | 3.237 | 8.00 | 70.00 | 0.25 |
| JJ5639-4G | PCD/PCBN | 1.227 | 4.227 | 8.00 | 70.00 | 0.20 | |
| JJ5640-5A | PCD/PCBN | 1.247 | 4.247 | 8.00 | 70.00 | 0.20 | |
| JJ5641-5A | PCD/PCBN | 1.547 | 4.00 | 8.00 | 70.00 | 0.425 | |
| JJ5642-5B | PCD/PCBN | 1.642 | 4.042 | 8.00 | 70.00 | 0.2 |
