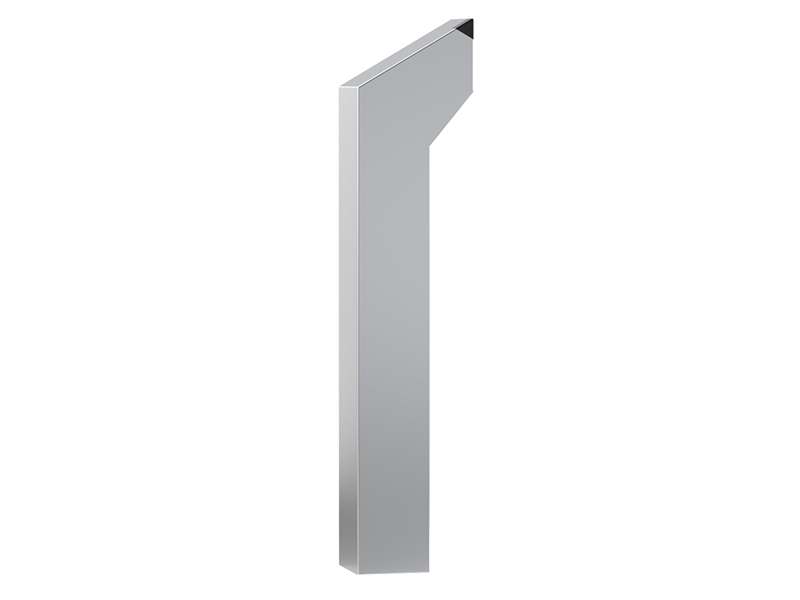

Joyjet offers high-performance PCD turning tools specifically designed for high-precision and high-surface-finish turning operations. These products from professional PCD tooling manufacturers are ideal for machining difficult-to-cut materials such as aluminum alloys, copper alloys, composites, and ceramics—significantly enhancing machining efficiency and tool life. Feel free to contact JoyJet for diamond tools wholesale prices.
Ultra-High Hardness & Wear Resistance: Diamond hardness up to HV8000–10000
Ultra-Low Friction Coefficient: Reduces built-up edge and enables mirror-finish machining (Ra ≤ 0.1μm)
Excellent Thermal Conductivity: Rapid heat dissipation prevents thermal deformation of the workpiece
Chemical Stability: Resistant to acid and alkali corrosion, suitable for wet machining environments
We provide comprehensive solutions, including diamond tool sharpening service, to help customers achieve sustainable and modern production goals.
| Image | Order no. | Tip material | W | H | L | R | V° | S |
 | JJ6721-2F | PCBN | 16 | 16 | 120 | 0.4 | 0 | 0 |
JJ6722-2F | PCBN | 19 | 19 | 140 | 0.4 | 0 | 0 | |
 | JJ6723-3F | PCD | 16 | 16 | 120 | 0.5 | 0 | 0 |
| JJ6724-3F | PCD | 19 | 19 | 140 | 0.5 | 0 | 0 | |
| JJ6725-3G | PCBN | 10 | 10 | 80 | 0.4 | 0 | 0 | |
| JJ6726-3G | PCBN | 13 | 13 | 100 | 0.4 | 0 | 0 | |
| JJ6727-4A | PCBN | 16 | 16 | 120 | 0.4 | 0 | 0 | |
| JJ6728-4A | PCD | 10 | 10 | 80 | 0.3 | 10 | 0 | |
| JJ6729-4G | PCD | 13 | 13 | 100 | 0.3 | 10 | 0 | |
| JJ6730-4G | PCD | 16 | 16 | 120 | 0.3 | 10 | 0 | |
 | JJ6731-5A | PCD | 10 | 10 | 80 | 0.3 | 10 | 0 |
| JJ6732-5A | PCD | 13 | 13 | 100 | 0.3 | 10 | 0 | |
| JJ6733-5B | PCD | 16 | 16 | 120 | 0.3 | 10 | 0 | |
 | JJ6734-2F | PCD | 16 | 16 | 120 | 0.5 | 0 | 0 |
| JJ6735-2F | PCD | 19 | 19 | 140 | 0.5 | 0 | 0 | |
| JJ6736-3F | PCBN | 10 | 10 | 80 | 0.4 | 0 | 0 | |
| JJ6737-3F | PCBN | 13 | 13 | 100 | 0.4 | 0 | 0 | |
| JJ6738-3G | PCBN | 16 | 16 | 120 | 0.4 | 0 | 0 | |
| JJ6739-3G | PCD | 10 | 10 | 80 | 0.3 | 10 | 0 | |
| JJ6740-4A | PCD | 13 | 13 | 100 | 0.3 | 10 | 0 | |
| JJ6741-4A | PCD | 16 | 16 | 120 | 0.3 | 10 | 0 | |
 | JJ6742-4G | PCD | 16 | 16 | 120 | 0.5 | 0 | 2 |
| JJ6743-4G | PCD | 19 | 19 | 140 | 0.5 | 0 | 2 | |
| JJ6744-5A | PCBN | 16 | 16 | 120 | 0.4 | 0 | 2 | |
| JJ6745-5A | PCBN | 19 | 19 | 140 | 0.4 | 0 | 2 | |
| JJ6746-5B | PCD | 13 | 13 | 100 | 0.3 | 10 | 2 | |
| JJ6747-5B | PCD | 16 | 16 | 120 | 0.3 | 10 | 2 |
