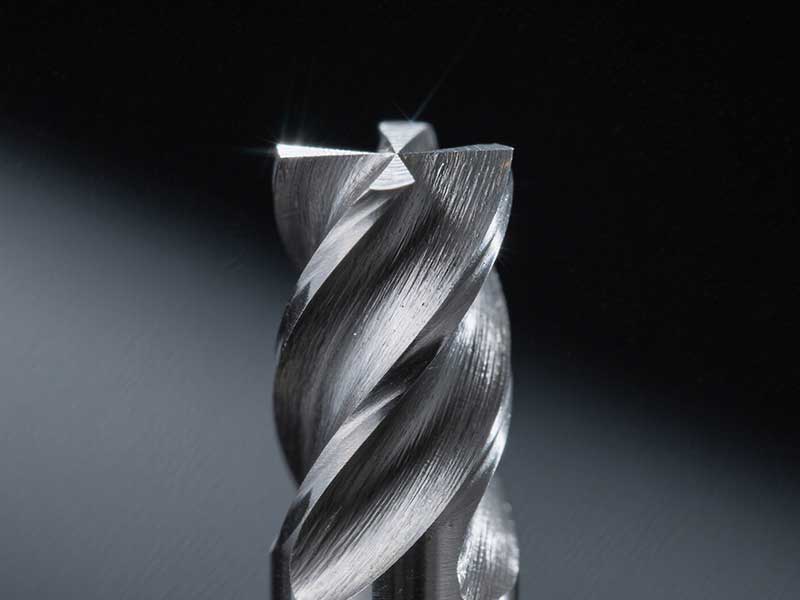

CBN Tools: A Revolutionary Solution for Processing High-Hardness Materials

May 19 , 2025
Table of Content [Hide]

    Why Have CBN Tools Become the Industry Standard for Hard Turning and Grinding?

    In the field of metal processing, the precision machining of high-hardness materials (such as hardened steel, cast iron, and high-temperature alloys) has always been a technical challenge. CBN tools (cubic boron nitride tools), with their ultra-high hardness second only to diamond (HV 3000-5000) and excellent thermal stability (resistant to temperatures up to 1400°C), have emerged as the preferred alternative to traditional carbide and ceramic tools.

    CBN (Cubic Boron Nitride) is an ultra-hard material synthesized from boron nitride under high temperature and high pressure, with unique advantages such as:

    • Extremely wear-resistant: The lifespan is 20-50 times longer than carbide tools when machining hardened steel

    • Excellent surface quality: Achieves a mirror effect with Ra below 0.4μm

    • High chemical inertness: Does not react with ferrous materials, avoiding issues like built-up edges

    For ultra-hard tool distributors, with the increasing adoption of hard turning processes for automotive transmission gears, bearing rings, etc., CBN tools are rapidly capturing the market due to their cost-effective "turning instead of grinding" advantage. Data shows that using CBN tools can increase processing efficiency by more than three times while saving on the investment and energy costs of grinding machines.



    Precision Breakthroughs of CBN Tools in Medical and Aerospace Fields

    Medical companies require extremely high dimensional accuracy (±0.01mm) for processing cobalt-chromium alloy joint implants and titanium alloy bone screws, while also facing the risk of tool edge breakage due to material work hardening. PCBN (Polycrystalline Cubic Boron Nitride) tools address these pain points through the following features:

    • Micron-level edge honing technology: Prevents micro chipping during cutting, extending tool life by 30%

    • Negative rake angle enhancement design: Increases edge strength, adapting to intermittent cutting conditions

    • Custom groove design: Optimizes chip evacuation for deep grooves and thin-walled structures in medical devices

    For heat treatment companies, CBN tools show irreplaceable value when machining carburized/nitrided parts with HRC55 and above. For example, in the hard turning of automotive transmission gears, CBN tools not only ensure a tooth profile accuracy of 0.02mm, but the resulting compressive residual stress also enhances the fatigue life of parts by 15%-20%, an added value that traditional grinding processes cannot achieve.

    3. How to Maximize the Performance Potential of CBN Tools?

    To fully leverage the efficacy of CBN tools, precise matching of "material-tool-process" is essential:

    Material Matching Guide

    Workpiece MaterialRecommended CBN TypeCutting Speed (m/min)
    Hardened steel (HRC55-65)High CBN content (80-90%)80-150
    Grey cast ironLow CBN content (50-60%)500-800
    Powder metallurgy high-speed steelMedium particle size CBN60-120

    Key Usage Tips

    • Prioritize dry cutting: CBN performs better at high temperatures, and coolant should be used only for chip evacuation and cooling

    • Rigidity is the lifeline: Insufficient rigidity of the machine/toolholder will cause micro chipping; radial runout ≤0.01mm is recommended

    • Wear monitoring standards: Replace the tool when VB ≤0.3mm or the crater depth on the rake face ≤0.1mm

    Sales strategy suggestions for ultra-hard tool distributors:

    1. Promote "turning instead of grinding" solutions, helping customers calculate single-piece cost reduction

    2. Offer trial tool packages (including 3 typical groove-type tools and cutting parameter cards)

    3. Collaborate with machine tool manufacturers to conduct hard turning process training


    Conclusion: CBN Tools – Redefining the Economics of Hard Material Machining

    From high-volume hard turning in automotive to ultra-precision machining of medical implants, CBN (Cubic Boron Nitride) tools are revolutionizing the way high-hardness materials are processed. Independent studies show that optimized CBN tooling solutions can reduce per-part machining costs by 40–60% while cutting energy consumption by over 50%.


    JoyJet – The Pioneer in CBN Tool Technology – delivers solutions ranging from standard products to fully customized systems:


    • Material Innovation: Gradient CBN content design balances wear resistance and toughness

    • Geometry Optimization: Proprietary wave-edge technology for interrupted cutting

    • Service Support: On-site machining diagnostics and tool reconditioning services


    Contact JoyJet’s technical team today for a tailored CBN efficiency-boosting solution!
