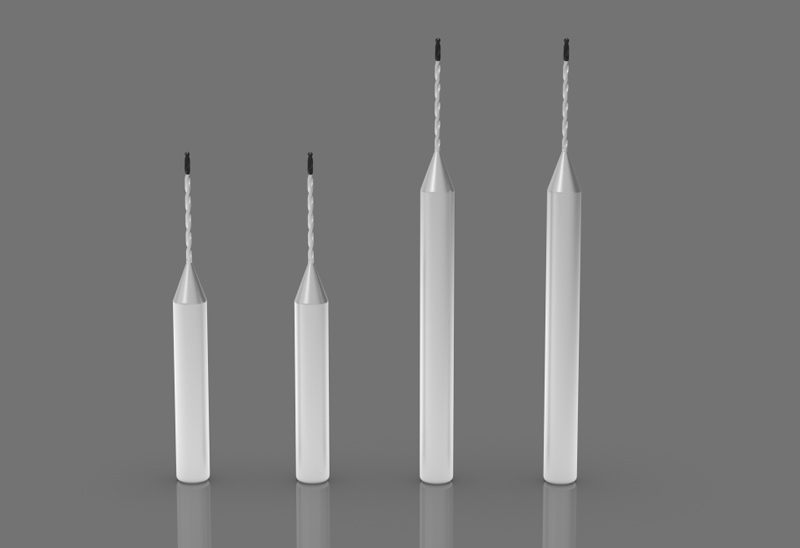

Material Information：
Material: PCD (Polycrystalline Diamond)
Workpiece Material: SiC (Silicon Carbide)
Tool Specification: Diameter 0.5mm × 6.0mm
Precision: ±0.005mm
PCD Micro Drill Handling and Usage Guidelines
Extreme Fragility & Sharp Cutting Edge: PCD micro drills are extremely fine and have very sharp cutting edges. During handling or inspection, avoid direct contact with the cutting edge to prevent damage or breakage due to external force impact.
Careful Handling: When removing or placing the drill into the tool holder, handle it with care and never point the drill tip towards operators.
Precision Measurement Requirements: For measuring diameter, cutting edge length, and other dimensions, use automated vision measuring instruments or non-contact optical measurement systems.
Safety Precautions: When observing machining conditions, wear protective eyewear and other safety gear.
Risk of Fracture & Safety Measures: PCD micro drills may fracture during use. Always ensure that the equipment has appropriate safety protection devices to prevent potential injury.
